Indoor High Refresh Rate Transparent LED Screen Display 1000*1000 TRA-B PH2-5
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | TRA-B PH3-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $386/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Pixel Pitch: | 3.91-7.82 | Panel Size: | 1000mmX1000mm |
|---|---|---|---|
| Resolution: | 256X128 | Pixel Density: | 32768 Dot/㎡ |
| Highlight: | High Refresh Transparent LED Screen Display,Transparent LED Screen Display 600W,transparent digital display 256X128 |
||
Product Description

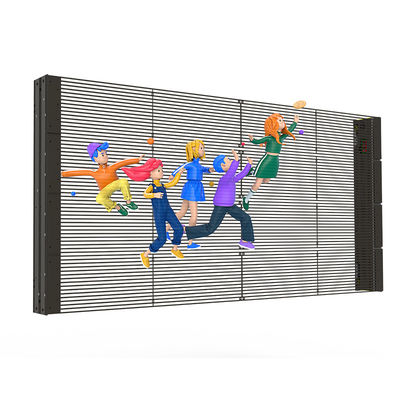

Indoor High Refresh Rate Transparent LED Screen Display 1000*1000 TRA-B PH2-5
Detailed product introduction document:Indoor transparent screen TRA-B series.pdf
Application scenario:
1. Publicity of scenic spots
The transparent screen can play the content about the history, culture and scenic introduction of Kunming Pool, so that visitors can have a deeper understanding of the culture and characteristics of the scenic spot.
2. Culture and education
It can be used as a youth education base, and the school organizes activities to watch scenic spots, introduce culture and history, and enrich education methods.
Product features:
1. High permeability, high light transmittance
2. Simple structure and light quality
3. Fast installation and easy maintenance
Product Details
Models: TRA-B PH2-5
| Pixel Pitch (mm) | 2.6-5.2 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 73728 | Transparency | 56% |
| Cabinet Pixel | 384X192 | Protection Grade | IP30 |
| Refresh Rate (HZ) | 1920Hz | Eliminate Shadows | Equipment |
| Driver Chip | ICN2038S(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/12 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2121 | Cabinet Size (mm) | 1000X1000X80 |
| Brightness (cd/㎡) | ≥800 | Weight (kg/㎡) | 7.5kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Aluminum Alloy |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |

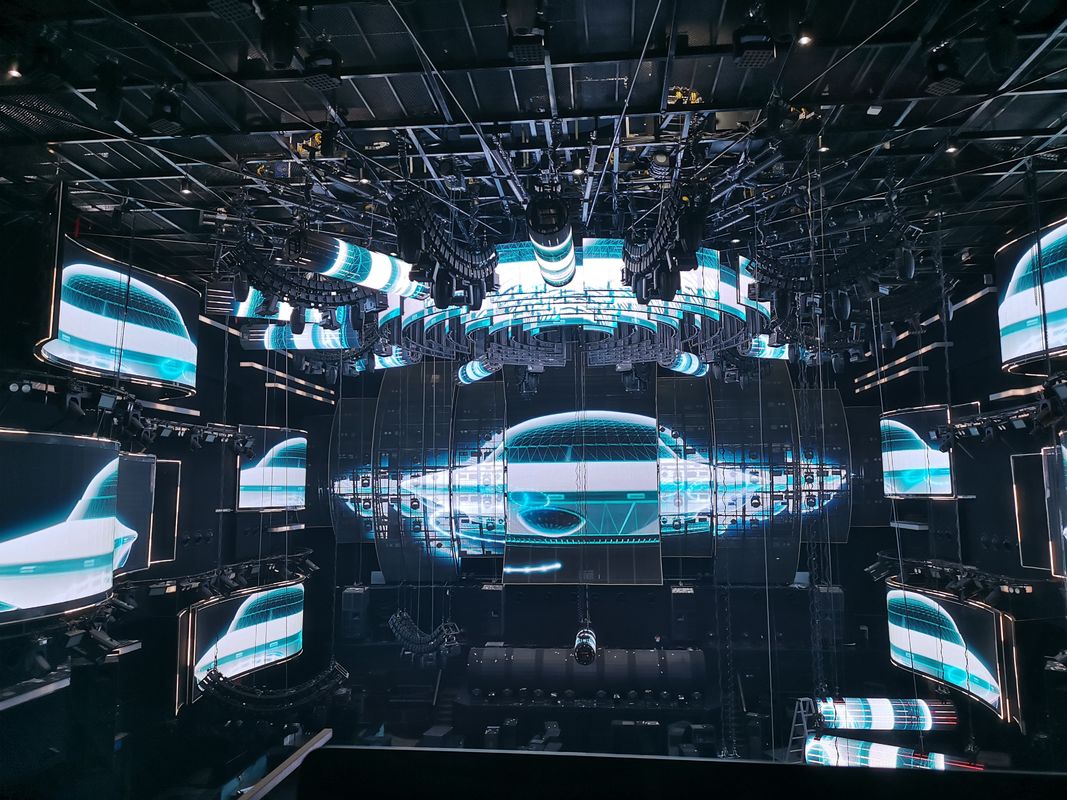

Application:
