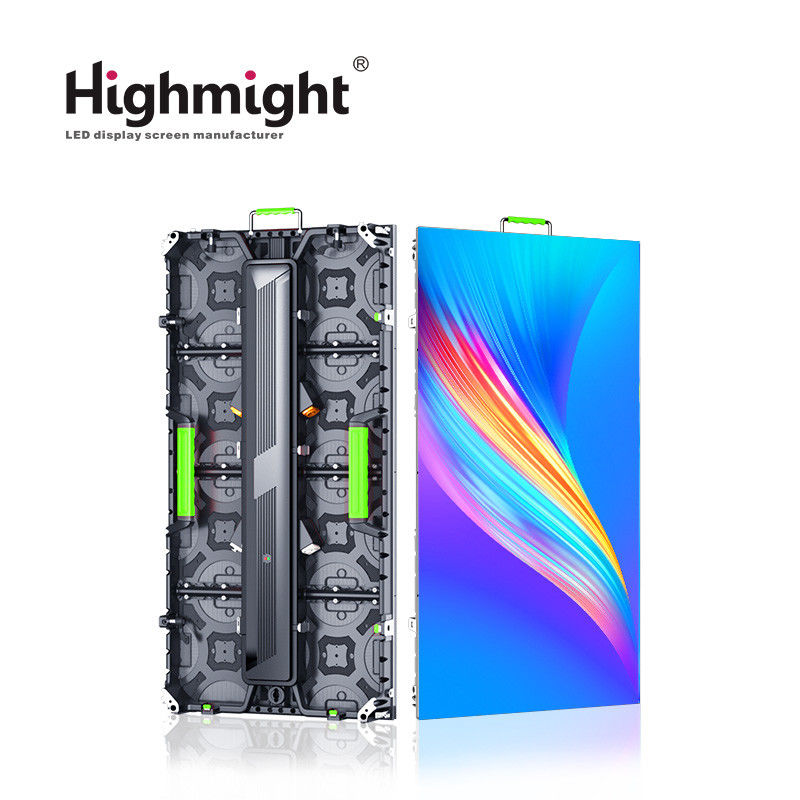

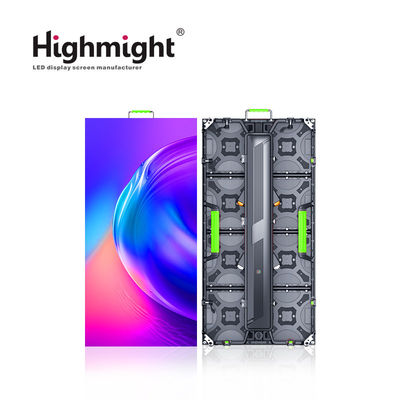

RS-B Series High Brightness High Definition LED Rental Screen Refresh Rate 1920/3840Hz 31kg/m2
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | RS-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Indoor Rental LED Display Screen | Type: | LED |
|---|---|---|---|
| Panel Size: | 500mmx1000mm | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Refresh Rate: | 1920/3840Hz |
| Box Material: | Die-cast Aluminum | Brightness: | 600-850 |
| Weight: | 31kg/m² | Maintenance Method: | Back Maintenance |
Product Description
IP65 and above protection level, LED rental screen adapts to various severe weather conditions
Introduction:
The LED rental screen is made of die-cast aluminum material, which is easy to transport and install. Even in harsh environments, it can display stably and meet the needs of efficient use.
Detailed product introduction document:Indoor rental screen RS-B series single page (soft...

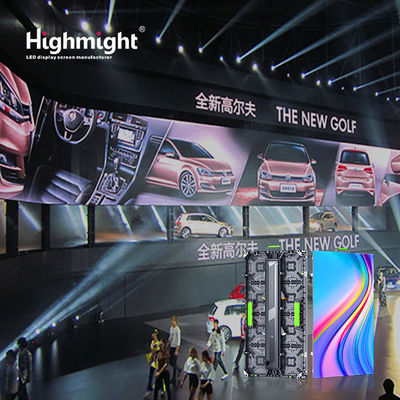

Applicable scenarios:
1.Stage rental
2.Banquet hall
3.Conference/lecture hall
4.Exhibition display
5.Transportation
...
Features:
1. Convenient installation: equipped with a quick lock design, which can be quickly assembled and disassembled.
2. The product supports front/rear maintenance, modular design, and the module and control box can be quickly and independently disassembled;
3. Waterproof and dustproof: with a protection level of IP65 and above, it can adapt to various severe weather conditions;
4. Module corner protection design: equipped with module corner protection to prevent damage to the screen during transportation and installation;
5. Simple installation: The box can be stacked, hoisted, installed and disassembled conveniently and quickly.
6. High grayscale level: rich details can be presented even at low brightness.
7. Integrated jumper design: The jumper between the boxes is integrated with the control box, which is more convenient to install and disassemble and more stable.
Product Details
Models:RS-B
| Rental LED display screen (RS-B series) | ||||
| Models | RS-B 2.604 | RS-B 2.976 | RS-B 3.91 | RS-B 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 600-850 | 600-850 | 600-850 | 600-850 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 100,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 14bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 600W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | IP30 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||
Application:
FAQ:
Q1: What is the control system?
A: Our company uses Nova / Colorlight System / Magnimade System / Mooncell System
Q2: How to connnect?
A: Support WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Q3: What is the price of LED display?
