Energy-saving And Environmentally Friendly LED Crystal Film Screen Innovative Display Solutions
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | JL-PH15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Outdoor,Indoor | Product Model: | JL-15 |
|---|---|---|---|
| Point Spacing: | 15mm | Standard Module Size: | 990mmX390mm |
| Screen Dimension: | Customized | Color: | Full Color |
| Application: | Exhibition Center | Brand Chain Stores | Car 4S Stores | Star Hotels | Shopping Malls | Commercial Canopies | Sightseeing Elevators | Glass Plank Roads | Airport Stations | Warranty: | 2 Years |
| Life Span: | 100000 Hours | Refresh Rate: | 1920/3840Hz |
| Highlight: | Energy-saving LED crystal film screen,Environmentally friendly LED crystal film screen |
||
Product Description
Eco-Friendly LED Crystal Film Screen | Seamless Integration & Long Lifespan
Detailed product introduction document:PH10-PH20 Crystal Film Screen JL Series.pdf
Product introduction:
LED crystal film screen is an advanced transparent display technology that embeds high-brightness LED lamp beads into a transparent film and can display high-definition content on transparent surfaces such as glass and acrylic. Its transparent design makes the screen almost invisible when not displaying content, making it an ideal choice for building curtain walls, window advertisements, exhibition displays and other places. The LED crystal film screen is thin and easy to install, and can be customized in size and shape according to customer needs to meet the application needs of different occasions. The screen's high brightness and wide viewing angle ensure a clear display even under strong light, while its energy-saving design also saves users running costs. LED crystal film screen is a modern display solution that is both functional and beautiful, bringing a sense of technology and fashion to various spaces.
Features:
1.Easy maintenance: Modular design supports quick disassembly and replacement for easy maintenance and repair.
2.Lightweight: Compared with traditional LED displays, crystal film screens are lighter, reducing the burden on the installation structure.
3.Borderless design: The borderless design allows the screens to be infinitely spliced, creating a larger and more stunning display effect.
4.Fast response time: The LED crystal film screen has an extremely fast response time and is suitable for playing dynamic videos and rapidly changing content.
5.Flexible display: Some crystal film screens can be bent or cut to adapt to various creative display needs.
6.High integration: The screen integrates multiple display and control functions, reducing system complexity.
7.High compatibility: supports multiple operating systems and content management systems, making it easy to integrate into existing display networks.
8.Strong weather resistance: It can adapt to various climatic conditions and can work normally in harsh environments such as high temperature and low temperature.
9.Low maintenance cost: long service life and low failure rate, greatly reducing maintenance costs.
10.High refresh rate: High refresh rate reduces flickering and provides a smooth viewing experience.
parameter:
| Pixel Pitch | 15mm | Pixel Density | 4356 dot/㎡ |
| Brightness | 800-4800 cd/㎡ | Module pixel resolution |
66x26 |
| Lifespan (hours) | 10000H | permeability |
＞97% |
| Refresh Rate | 1920/3840HZ | Cabinet Size | 990mmx390mm |
| LED lamp bead model |
SMD2020 |
Gray Scale | 14bit |
| Cabinet Material | Soft epoxy resin | Installation | Horizontal ≥160°, vertical ≥160° |

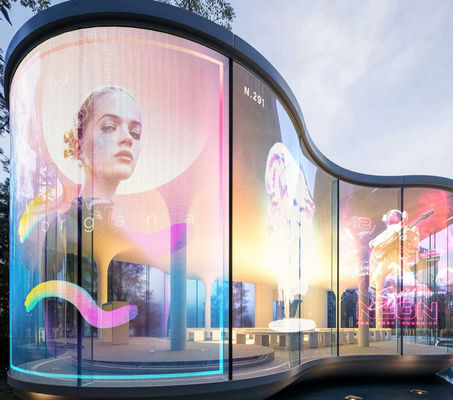

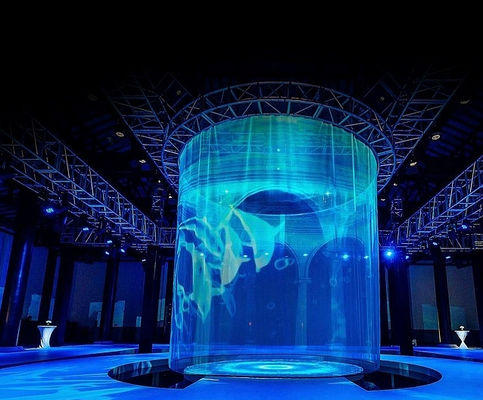

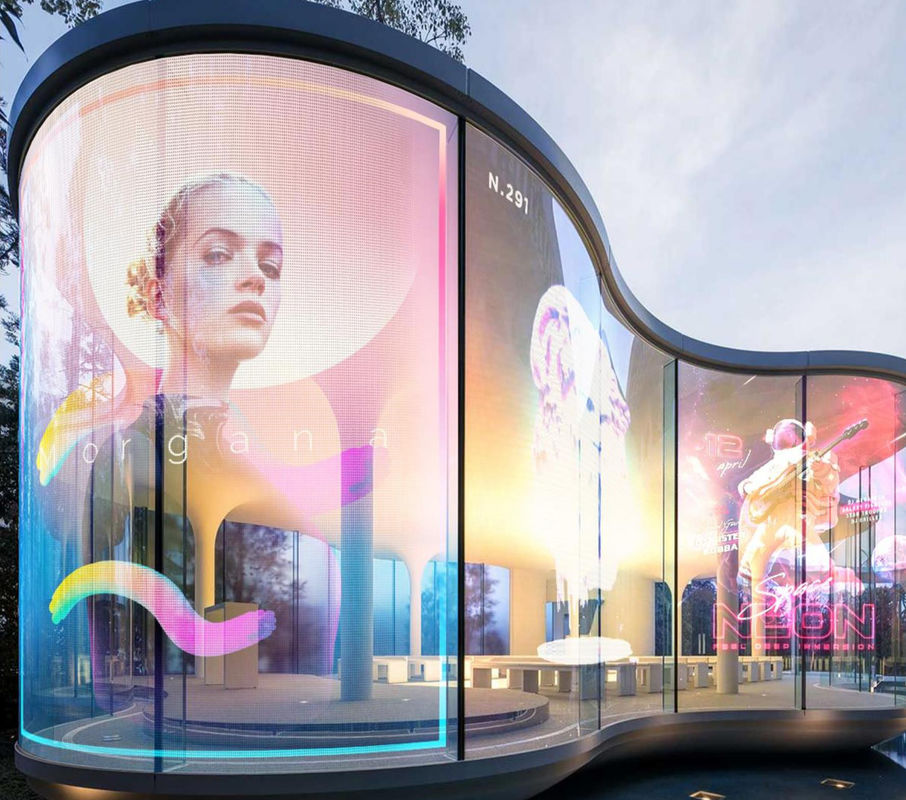

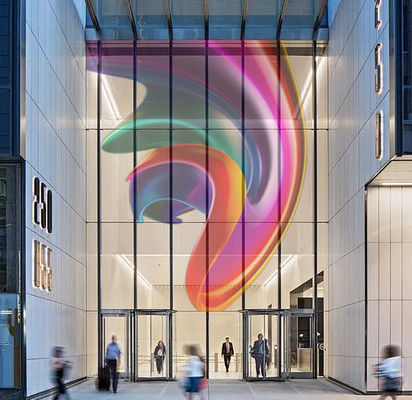

Cases:
FQA:
1. What kind of content can be displayed on the LED crystal film screen?
A: The screen can display a variety of content, including videos, images, animations, and text. It supports different formats and can be controlled via software or remote control.
2. How durable is the LED crystal film screen?
A: The screen is made from high-quality materials that ensure durability and a long lifespan. With proper care and maintenance, it can last for many years.
3. Can the LED crystal film screen be removed and reused?
A: Yes, the screen can be carefully removed from its installation surface and, if done properly, it can be reused in a different location.
4. How do you clean and maintain the LED crystal film screen?
A: Cleaning is simple; just use a soft, dry cloth to remove dust and smudges. Avoid using harsh chemicals or abrasive materials. Regular inspections are recommended to ensure all components are functioning properly.
5. Is the screen compatible with existing glass surfaces?
A: Yes, the LED crystal film screen is compatible with most glass surfaces, including windows, partitions, and facades, as long as the surface is smooth and clean.
6. How is the LED crystal film screen powered?
A: The screen is powered through a standard electrical connection, which is connected to a power supply unit. It also requires a data connection to control the displayed content.
