Ultra-Thin Transparent LED Crystal Film Screen High Brightness Energy for Shopping Malls
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | JL-PH5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Outdoor,Indoor | Product Model: | JL-P5 |
|---|---|---|---|
| Point Spacing: | 5mm | Standard Module Size: | 1000mmX320mm |
| Screen Dimension: | Customized | Color: | Full Color |
| Application: | Exhibition Center | Brand Chain Stores | Car 4S Stores | Star Hotels | Shopping Malls | Commercial Canopies | Sightseeing Elevators | Glass Plank Roads | Airport Stations | Warranty: | 2 Years |
| Product Name: | Outdoor Holographic Advertising Led Display Screen | Life Span: | 100000 Hours |
| Refresh Rate: | 1920/3840Hz | ||
| Highlight: | Transparent LED Crystal Film Screen,High Brightness LED Crystal Film Screen,Ultra-Thin LED Crystal Film Screen |
||
Product Description
Ultra-Thin Transparent LED Crystal Film Screen | High Brightness & Energy Efficient
Detailed product introduction document:PH5-PH8 Crystal Film Screen JL Series.pdf
Product introduction:

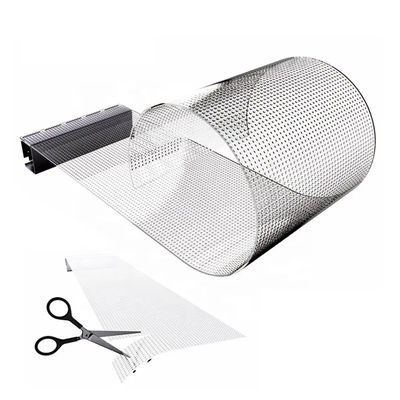

LED film screen is a flexible display technology that embeds LED lamp beads in a transparent film and is thin, transparent and bendable. It is suitable for scenes such as building glass curtain walls, shopping mall windows and stage design, providing high-definition display effects that do not block the line of sight. It is easy to install, can be cut and customized, and is widely used in advertising and creative displays. It has both visual impact and high light transmittance.
Features:
1.High brightness: Brighter than traditional display technology, suitable for outdoor use.
2.High Contrast: Delivers deep blacks and richer colors.
3.Low power consumption: high efficiency, extending device battery life.
4.Long life: strong durability, reducing screen aging problems.
5.Fast response: Suitable for quickly changing image displays, such as games and videos.
6.High resolution: supports higher pixel density and improves picture clarity.4
parameter:
| Pixel Pitch | 5mm | Pixel Density | 40000 dot/㎡ |
| Brightness | 800-4500 cd/㎡ | Scan Mode | 1/32Scan |
| Lifespan (hours) | 10000H | permeability |
＞85% |
| Refresh Rate | 1920/3840HZ | Cabinet Size | 1000mmx320mm |
| LED lamp bead model |
SMD1313 |
Gray Scale | 14bit |
| Cabinet Material | Soft epoxy resin | Installation | Horizontal ≥160°, vertical ≥160° |

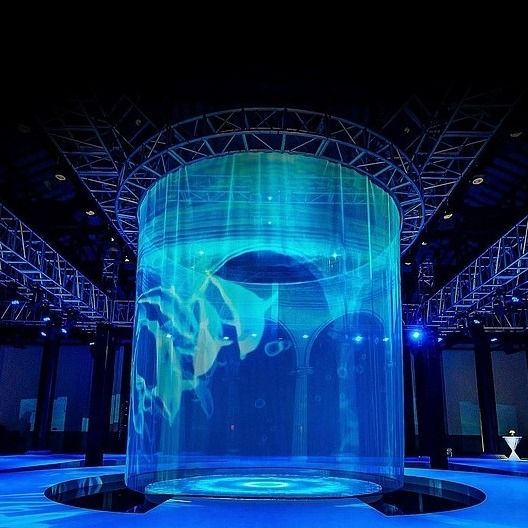

Cases:
FQA:
1.What is an LED crystal film screen?
A: LED crystal film screen is a transparent LED screen that can be attached to glass or other transparent surfaces. It displays a vibrant visual effect while maintaining surface transparency, allowing light and visibility to pass through.
2.What is the transparency of LED crystal film screen?
A: LED crystal screens typically offer up to 90% transparency, depending on pixel spacing and design. This will make it clearly visible when the screen is not showing
3.Can the LED crystal film screen be customized to different sizes?
A: Yes, LED crystal film screens can be custom-cut to fit various sizes and shapes, making it suitable for a wide range of applications, from small windows to large glass walls.
