Seamless Integration LED Crystal Film Screen 100000 Hours Long Lifespan 15mm Point Spacing
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | JL-PH15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Outdoor,Indoor | Product Model: | JL-15 |
|---|---|---|---|
| Point Spacing: | 15mm | Standard Module Size: | 990mmX390mm |
| Screen Dimension: | Customized | Color: | Full Color |
| Application: | Exhibition Center | Brand Chain Stores | Car 4S Stores | Star Hotels | Shopping Malls | Commercial Canopies | Sightseeing Elevators | Glass Plank Roads | Airport Stations | Warranty: | 2 Years |
| Life Span: | 100000 Hours | Refresh Rate: | 1920/3840Hz |
| Highlight: | Seamless Integration LED Crystal Film Screen,Long Lifespan LED Crystal Film Screen |
||
Product Description
Eco-Friendly LED Crystal Film Screen | Seamless Integration & Long Lifespan
Detailed product introduction document:PH10-PH20 Crystal Film Screen JL Series.pdf
Product introduction:

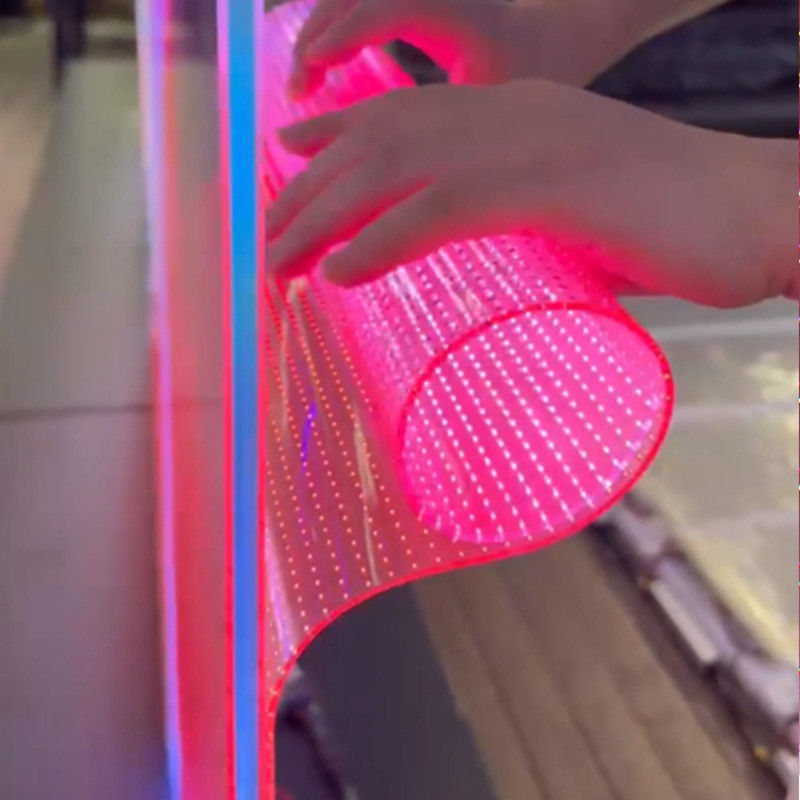

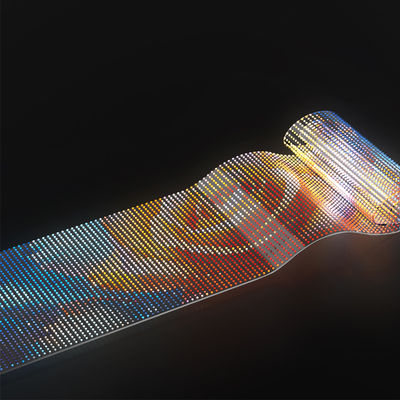

LED crystal film screen is an emerging display technology that aims to provide users with a solution that combines transparency and high-definition display effects. The screen uses a transparent film as a carrier, with LED lamp beads embedded in it, which can display a high-brightness display effect. The unique design device of the LED crystal film screen is especially suitable for glass walls, showcases, conference room partitions, etc. that need to maintain a sense of transparency. occasion. It delivers clear, bright images and video content while maintaining transparency on the mounting surface. The display effect is not limited to the brightness of natural light and the visual field of space. The screen is thin and light, easy to install, and supports customization in a variety of sizes and shapes to meet the needs of different customers. The LED crystal film screen also has efficient brightness management function, low power consumption and long consumption, making it an environmentally friendly display choice. Users can easily manage and update content through an intelligent control system, ensuring that displayed content is always fresh and engaging. Whether in commercial applications or creative displays, LED crystal film screens aim to bring users a new visual experience and enhance the sense of technology and modernity in the space.
Features:
1.Easy to install: The lightweight design allows it to be directly attached to transparent surfaces such as glass, making it quick to install and easy to operate.
2.Remote control: Supports remote content management and updates through the network or control system, which is convenient and efficient.
3.Custom size: Supports customizing different sizes and shapes according to customer needs to adapt to various applications.
4.Waterproof and dustproof: Using protective coating, it can effectively prevent the intrusion of water and dust and adapt to indoor and outdoor environments.
5.Strong compatibility: It is compatible with a variety of input signals and supports multiple content formats such as videos, pictures, text, etc.
parameter:
| Pixel Pitch | 15mm | Pixel Density | 4356 dot/㎡ |
| Brightness | 800-4800 cd/㎡ | Module pixel resolution |
66x26 |
| Lifespan (hours) | 10000H | permeability |
＞97% |
| Refresh Rate | 1920/3840HZ | Cabinet Size | 990mmx390mm |
| LED lamp bead model |
SMD2020 |
Gray Scale | 14bit |
| Cabinet Material | Soft epoxy resin | Installation | Horizontal ≥160°, vertical ≥160° |

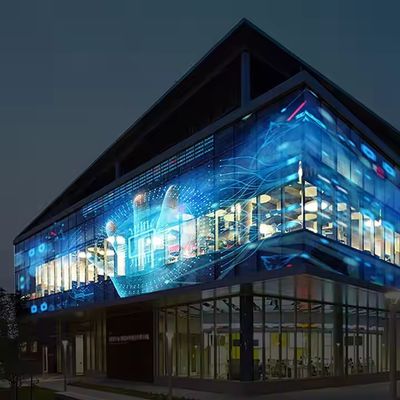

Cases:
FQA:
1.How long does it take to install an LED crystal film screen?
A: Installation time varies depending on the size and complexity of the project, but it generally takes a few hours to a day for standard installations.
2. Is it possible to integrate the LED crystal film screen with smart building systems?
A: Yes, the LED crystal film screen can be integrated with smart building systems, allowing for centralized control of content and synchronization with other digital displays.
3. What are the key advantages of using an LED crystal film screen over traditional LED screens?
A: The key advantages include high transparency, lightweight design, energy efficiency, easy installation, and the ability to maintain natural light and visibility while displaying dynamic content.
