Customized brightness Transparent LED Crystal Film Screen for Dynamic Visual Impact
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | JL-PH20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Outdoor,Indoor | Product Model: | JL-20 |
|---|---|---|---|
| Point Spacing: | 20mm | Standard Module Size: | 1000mmX400mm |
| Screen Dimension: | Customized | Color: | Full Color |
| Application: | Exhibition Center | Brand Chain Stores | Car 4S Stores | Star Hotels | Shopping Malls | Commercial Canopies | Sightseeing Elevators | Glass Plank Roads | Airport Stations | Warranty: | 2 Years |
| Life Span: | 100000 Hours | Refresh Rate: | 1920/3840Hz |
| Highlight: | Transparent LED Crystal Film Screen,Customized brightness LED Crystal Film Screen |
||
Product Description
High-brightness transparent LED crystal film screen - achieving dynamic visual impact
Detailed product introduction document:PH10-PH20 Crystal Film Screen JL Series.pdf
Product introduction:

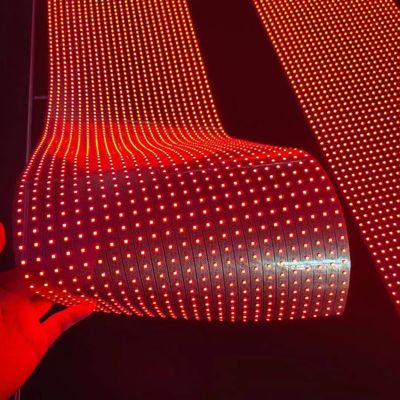

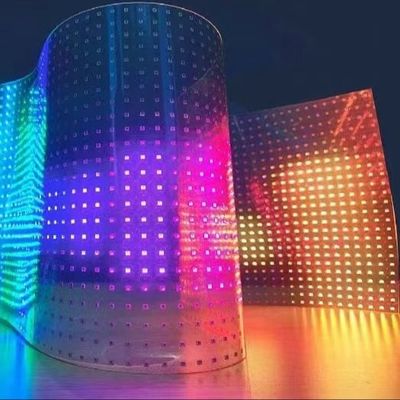

LED crystal film screen is an innovative display technology that embeds LED lamp beads in a transparent film. It can display high-definition images and videos on transparent surfaces such as glass while maintaining the transparency of the background and the penetration of natural light. This screen is particularly suitable for occasions where a sense of open space needs to be maintained, such as retail windows, shopping mall glass curtain walls, exhibition displays, etc. The transparent design of the LED crystal film screen makes it almost invisible when not in use, allowing it to blend perfectly with the surrounding environment. The thin and light design of the screen makes installation easy and fast, and the size and shape can be customized according to customer needs. The characteristics of high brightness and low energy consumption ensure excellent display effects in strong light environments, while also providing users with an energy-saving and environmentally friendly long-term use experience. It is an ideal choice for modern commercial displays and architectural decoration.
Features:
1.Fast response time: The LED crystal film screen has an extremely fast response time and is suitable for playing dynamic videos and rapidly changing content.
2.Flexible display: Some crystal film screens can be bent or cut to adapt to various creative display needs.
3.High integration: The screen integrates multiple display and control functions, reducing system complexity.
4.High compatibility: supports multiple operating systems and content management systems, making it easy to integrate into existing display networks.
5.Strong weather resistance: It can adapt to various climatic conditions and can work normally in harsh environments such as high temperature and low temperature.
6.Low maintenance cost: long service life and low failure rate, greatly reducing maintenance costs.
7.High refresh rate: High refresh rate reduces flickering and provides a smooth viewing experience.
parameter:
| Pixel Pitch | 20mm | Pixel Density | 2500 dot/㎡ |
| Brightness | 800-4800 cd/㎡ | Module pixel resolution |
50x20 |
| Lifespan (hours) | 10000H | permeability |
＞97% |
| Refresh Rate | 1920/3840HZ | Cabinet Size | 1000mmx400mm |
| LED lamp bead model |
SMD2020 |
Gray Scale | 14bit |
| Cabinet Material | Soft epoxy resin | Installation | Horizontal ≥160°, vertical ≥160° |

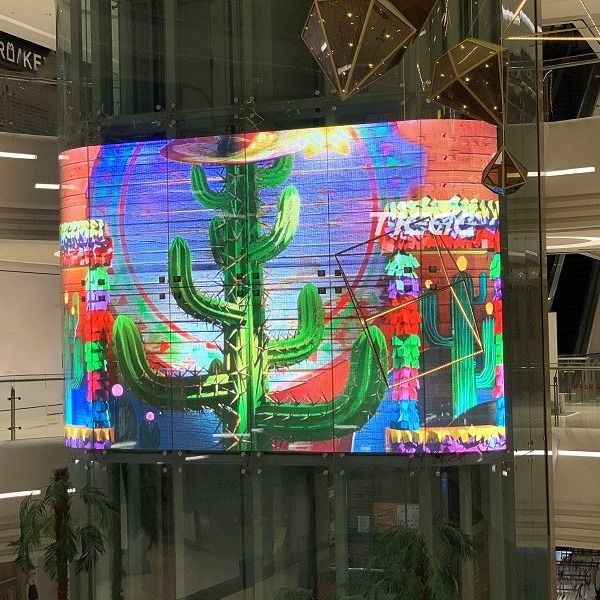

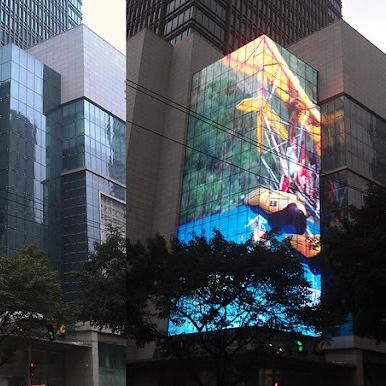

Cases:
FQA:
1.How long does it take to install an LED crystal film screen?
A: Installation time varies depending on the size and complexity of the project, but it generally takes a few hours to a day for standard installations.
2. Is it possible to integrate the LED crystal film screen with smart building systems?
A: Yes, the LED crystal film screen can be integrated with smart building systems, allowing for centralized control of content and synchronization with other digital displays.
3. What are the key advantages of using an LED crystal film screen over traditional LED screens?
A: The key advantages include high transparency, lightweight design, energy efficiency, easy installation, and the ability to maintain natural light and visibility while displaying dynamic content.
