High-Definition LED Crystal Film Screen , Commercial Holographic LED Displays
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | JL-PH6.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Outdoor,Indoor | Product Model: | JL-6.25 |
|---|---|---|---|
| Point Spacing: | 6.25mm | Standard Module Size: | 1000mmX400mm |
| Screen Dimension: | Customized | Color: | Full Color |
| Application: | Exhibition Center | Brand Chain Stores | Car 4S Stores | Star Hotels | Shopping Malls | Commercial Canopies | Sightseeing Elevators | Glass Plank Roads | Airport Stations | Warranty: | 2 Years |
| Product Name: | Outdoor Holographic Advertising Led Display Screen | Life Span: | 100000 Hours |
| Refresh Rate: | 1920/3840Hz | ||
| Highlight: | Holographic LED Crystal Film Screen,High-Definition LED Crystal Film Screen,Commercial Holographic LED Displays |
||
Product Description
High-Definition LED Crystal Film Screen - The Best Choice for Commercial Displays
Detailed product introduction document:PH5-PH8 Crystal Film Screen JL Series.pdf
Product introduction:

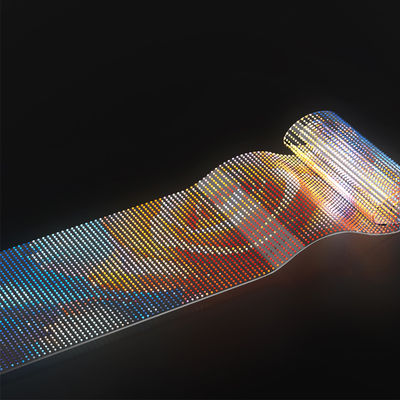

LED crystal film screen is a transparent display technology. By embedding LED pixels in a transparent film, it can display high-definition content on transparent surfaces such as glass while maintaining the transparency of the background. This kind of screen is widely used in shopping mall windows, exhibition displays, corporate lobbies and other places, providing a solution that can display dynamic content without affecting the transparency of the space. The high transparency of the LED crystal film screen makes it almost invisible when not displaying content, and can perfectly integrate into the architectural environment. The screen is thin and light, easy to install, and supports customization in a variety of sizes and shapes. Its high brightness and low energy consumption ensure excellent display effects in strong light environments, while also providing users with an energy-saving and environmentally friendly long-term use experience.
Features:
1.High contrast: Provides deep blacks and vivid bright colors, making images more three-dimensional and vivid.
2.Durability: High-quality materials and workmanship ensure the screen's long service life and stable performance.
3.Intelligent control: Supports a variety of intelligent control methods, such as touch screen, voice control, mobile APP, etc.
4.Easy maintenance: Modular design supports quick disassembly and replacement for easy maintenance and repair.
5.Lightweight: Compared with traditional LED displays, crystal film screens are lighter, reducing the burden on the installation structure.
6.Borderless design: The borderless design allows the screens to be infinitely spliced, creating a larger and more stunning display effect.
7.Fast response time: The LED crystal film screen has an extremely fast response time and is suitable for playing dynamic videos and rapidly changing content.

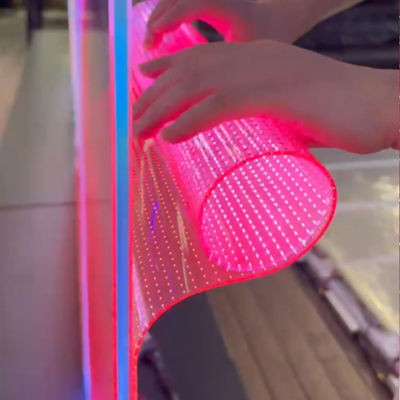

8.Flexible display: Some crystal film screens can be bent or cut to adapt to various creative display needs.
9.High integration: The screen integrates multiple display and control functions, reducing system complexity.
parameter:
| Pixel Pitch | 6.25mm | Pixel Density | 25600 dot/㎡ |
| Brightness | 800-4500 cd/㎡ | Module pixel resolution |
160x64 |
| Lifespan (hours) | 10000H | permeability |
＞85% |
| Refresh Rate | 1920/3840HZ | Cabinet Size | 1000mmx400mm |
| LED lamp bead model |
SMD1313/1515 |
Gray Scale | 14bit |
| Cabinet Material | Soft epoxy resin | Installation | Horizontal ≥160°, vertical ≥160° |

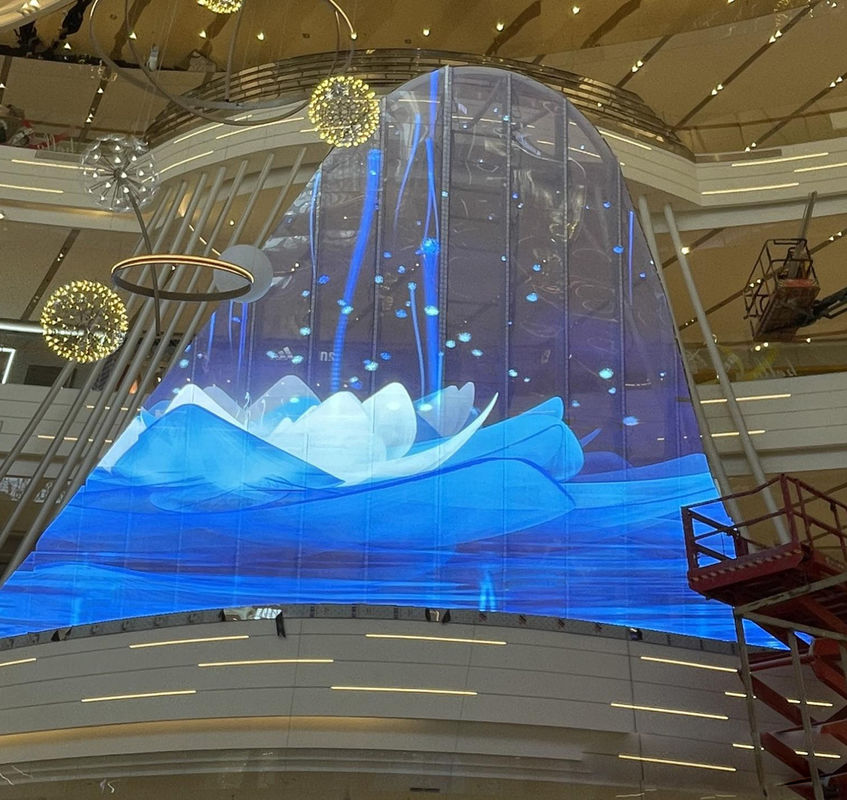

Cases:
FQA:
1. Is the screen compatible with existing glass surfaces?
A: Yes, the LED crystal film screen is compatible with most glass surfaces, including windows, partitions, and facades, as long as the surface is smooth and clean.
2. How is the LED crystal film screen powered?
A: The screen is powered through a standard electrical connection, which is connected to a power supply unit. It also requires a data connection to control the displayed content.
3. Can the screen be cut to fit irregular shapes?
A: Yes, the LED crystal film screen can be customized and cut to fit irregular shapes, allowing for creative and unique installations.
4. How does the screen affect the view from the inside?
A: When the screen is not displaying content, the view through the glass remains largely unobstructed due to the high transparency. Even when content is displayed, the view from the inside is minimally affected.
5. What is the typical lifespan of an LED crystal film screen?
A: With proper maintenance, the LED crystal film screen can have a lifespan of 50,000 to 100,000 hours, depending on usage and environmental conditions.
6. Can the screen be used in curved installations?
A: Yes, the LED crystal film screen can be applied to curved surfaces, making it versatile for various architectural designs and applications.
7. How long does it take to install an LED crystal film screen?
A: Installation time varies depending on the size and complexity of the project, but it generally takes a few hours to a day for standard installations.
