High resolution and brightness LED flexible screen SQ-R series is perfect for indoor and outdoor display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | SR-Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | LED Transparent Film Screen | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Lifespan: | ≥100000H |
| Refresh Rate: | 1920/3840HZ | Module Thickness (mm): | 10 |
| Highlight: | High Refresh LED Transparent Film Screen,High Gray LED Transparent Film Screen,High Gray Transparent LED Film Display |
||
Product Description
High resolution and brightness LED flexible screen SQ-R series is perfect for indoor and outdoor display
Detailed product introduction document:Indoor Soft Module SR-Q Series.pdf
Product Details:
| LED Indoor Soft Module SR-Q Series | ||
| Module model (mm) | SR-Q 2 | SR-Q 4 |
| Module point spacing (mm) | 2 | 4 |
| Module Size (mm) | 256x128 | 256x128 |
| Module pixel | 128x64 | 64x32 |
| Density pixels (dot/㎡) | 250000 | 62500 |
| Lamp bead model | SMD1515 | SMD2020 |
| Brightness (cd/㎡) | ≤800 | ≤800 |
| Refresh rate (Hz) | 3840 | 3840 |
| Scanning mode | 1/32扫 | 1/16扫 |
| Module weight (kg) | 14 | 14 |
| Module thickness (mm) | 10 | 10 |
| Service life | ≥100,000 hours | |
| Pixel composition | RGB 3-in-1 | |
| Grayscale | 14bit | |
| Maximum power (W/㎡) | 1000-1200W | |
| Average power (W/㎡) | 400-600W | |
| Eliminate ghosting | Equipment | |
| input voltage | AC100～240V 50/60HZ | |
| Module input voltage | DC4.7～5V±0.2V | |
| Environment | Temperature -10～40℃ Humidity 10％-90％ | |
| Installation | Magnetic suction/box installation | |
Introduction:
LED soft module is a kind of LED display product with flexible module characteristics, mainly for arc, curved surface, special application scenarios for display. Compared with traditional LED modules, LED soft module uses display flexible materials and specially designed circuit boards, which can be bent without affecting the effect, thus adapting to various complex installation requirements.

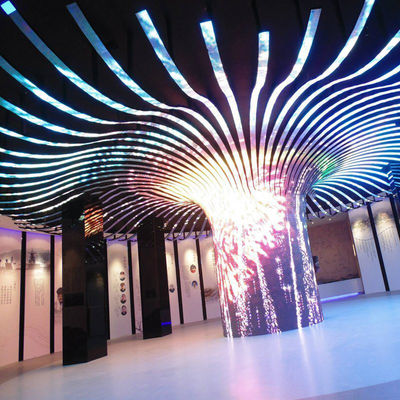

Application Scenario:
Features:
1. Thin and light design: Profile aluminum frame design, the screen body is light and thin; it saves space and cost, and is easy to carry and install.
2. The product supports front/back maintenance, saving building space and costs; improving installation efficiency.
3. Environmental protection/high brightness/high energy saving: divided voltage power supply design, the average power consumption
is only 200W at most; high brightness of more than 6000nit, environmental protection and energy saving.
4. Easy installation: The box can be stacked, hoisted, installed and disassembled conveniently and quickly.
5. High protection level/stable and reliable: high-strength anti-aging fabric, IP65 protection level; die-cast aluminum bottom shell, high heat dissipation rib design, good heat dissipation performance, extending the service life of the screen.

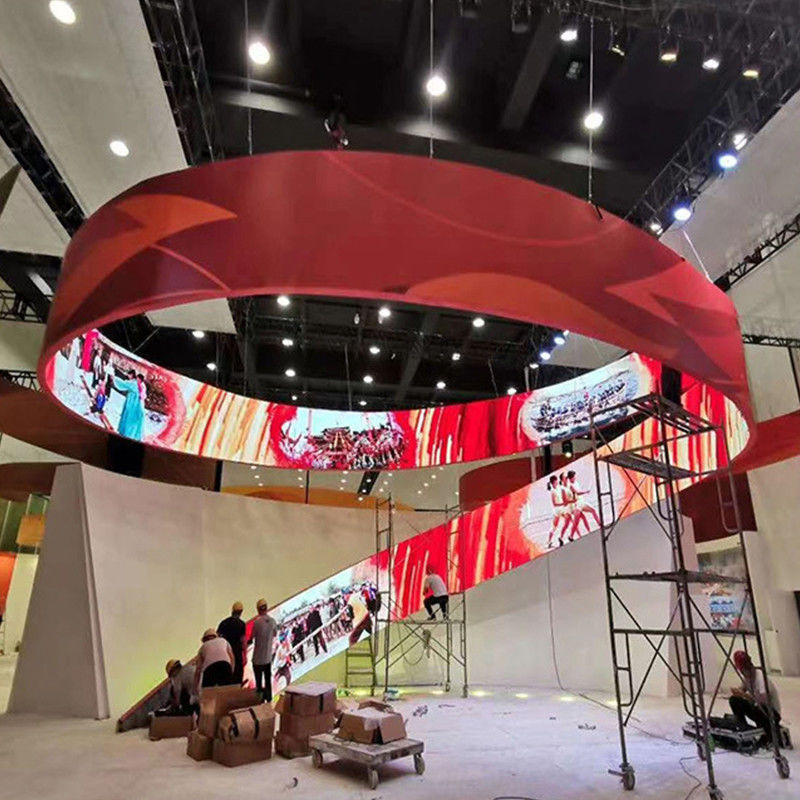

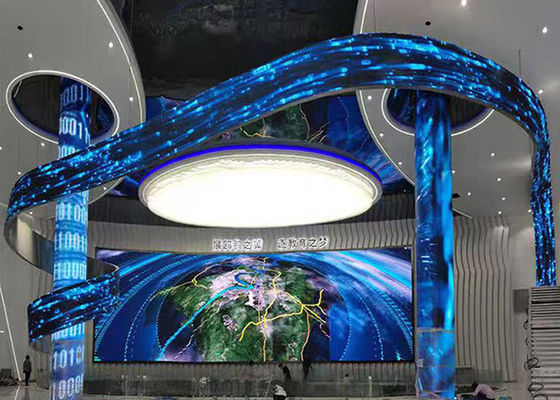

Cases:
Welcome to customize.
