High brightness LED flexible display screen, can be bent up to 180°, can be spliced at will
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | SR-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 pieces |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Transparent LED Film Display | Type: | LED |
|---|---|---|---|
| Lifespan: | ≥100000H | Refresh Rate: | 1920/3840HZ |
| Color: | Full Color | Module Weight (kg): | 14 |
| Module Thickness (mm): | 10 | Installation: | Magnetic Suction/box Installation |
| Highlight: | High Brightness LED Transparent Film Screen,RoHS LED Transparent Film Screen Display |
||
Product Description

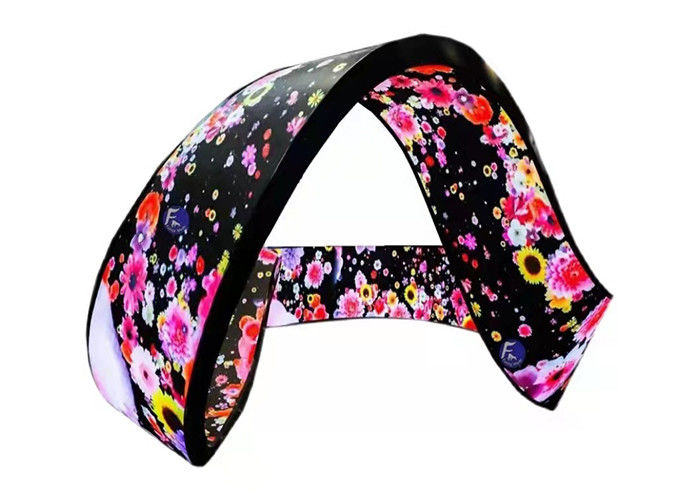

High brightness LED flexible display screen, can be bent up to 180°, can be spliced at will
Introduction:
The soft film display is made of flexible materials, which has extremely high flexibility and plasticity. It can be bent and folded as needed to adapt to various complex installation environments. Whether it is cylindrical, wavy or other creative shapes, the soft film display can perfectly present it. The soft film display is light in weight and easy to transport and carry. Compared with traditional LED displays, its lightweight design not only reduces transportation costs but also reduces the requirements for load-bearing structures during installation. It is widely used in various temporary display occasions, such as exhibitions, concerts and event sites.
Detailed product introduction document:Indoor Soft Module SR-A Series.pdf

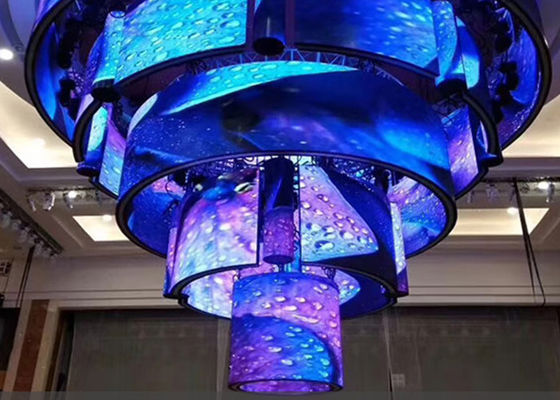

Applicable scenarios:
Product features:
1. Customized flexible screen, quality assurance 10,000 times bending and folding test, soft and strong, high quality;
2. Ultra-thin design uses special materials and advanced technology, ultra-thin and ultra-light, the weight of a single module is only 185g;
3. Flexible, lightweight, beautiful, can be customized according to engineering requirements, while ensuring beauty, large-area seamless splicing;
4. Extreme bending ability, whether it is bending forward or backward, the bending degree is up to 180°.
Product Details:
| LED Indoor Soft Module SR-Q Series | ||
| Module model (mm) | SR-Q 2 | SR-Q 4 |
| Module point spacing (mm) | 2 | 4 |
| Module Size (mm) | 256x128 | 256x128 |
| Module pixel | 128x64 | 64x32 |
| Density pixels (dot/㎡) | 250000 | 62500 |
| Lamp bead model | SMD1515 | SMD2020 |
| Brightness (cd/㎡) | ≤800 | ≤800 |
| Refresh rate (Hz) | 3840 | 3840 |
| Scanning mode | 1/32扫 | 1/16扫 |
| Module weight (kg) | 14 | 14 |
| Module thickness (mm) | 10 | 10 |
| Service life | ≥100,000 hours | |
| Pixel composition | RGB 3-in-1 | |
| Grayscale | 14bit | |
| Maximum power (W/㎡) | 1000-1200W | |
| Average power (W/㎡) | 400-600W | |
| Eliminate ghosting | Equipment | |
| input voltage | AC100～240V 50/60HZ | |
| Module input voltage | DC4.7～5V±0.2V | |
| Environment | Temperature -10～40℃ Humidity 10％-90％ | |
| Installation | Magnetic suction/box installation | |
Application:
Welcome to customize.
