Waterproof IP65 LED Dance Floor Tiles Super Thin High Protection 500mm*500mm DM-R 2.9
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | DM-R PH2.976 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $1200.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor, Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Media Available: | Datasheet, Photo |
| Brightness: | 1500 Cd/㎡ | Pixel Density: | 112896 Dot/㎡ |
| Lifespan (hours): | ≥100000H | Pixel Pitch: | 2.9mm |
| Panel Size: | 500x500mm | IP Rating: | IP65 |
| Resolution: | 168x168 | Refresh Rate: | 1920HZ/3840HZ |
| Installation: | Fixed Installation | LED Chip: | SMD1415 |
| Scan Mode: | 1/21 Scan | Module Size: | 250mm*250 Mm |
| Highlight: | IP65 LED Dance Floor Tiles,LED Dance Floor Tiles Super Thin |
||
Product Description

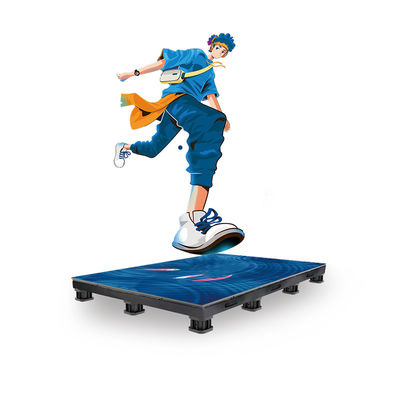

500mm*500mm DM-R PH2.9 waterproof Super Thin High Protection LED Dance Floor Tiles
Detailed product introduction document:Indoor floor tile screen DM-R series.pdf
Applicable scenarios:
1. stage performance
2. exhibition hall and party
3. shopping mall
4. Bars/Night Clubs/KTV and supermarket
5. Floor Display and Media Advertising
6. space decoration
Features:
1. high refresh and high gray scale
2. Can play various lighting effects, words, graphics, flashes, videos, etc.
3. The floor LED display adopts high-strength frame design, which ensures its safety and firmness.Its maximum load-bearing capacity is about 2200kg/m,which can greatly guarantee the safety of stage activities.
4.high load-bearing capacity: the surface of the acrylic plate, is made of high-strength wear-resistant non-slip material, the maximum bearing capacity of 1.5T, strong bearing capacity, strong and thin, can be trampled at will;
5. anti-slip and anti-seismic foot mat: ensure the flatness of the screen itself at the same time, increase the anti-slip and anti-seismic effect;
6. exquisite appearance, standardized box: excellent production process, high reliability, greatly improve the installation speed and display stability of the screen body, so that maintenance is more convenient and safe;
7. seamless splicing: the whole screen flatness splicing is less than 0.3mm, to achieve seamless splicing, different boxes can be any combination.
Product Details
Models: DM-R PH2.9
| Pixel Pitch (mm) | 2.976 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 250x250 | Maximum Power (W/㎡) | 800W |
| Module Pixel | 84x84 | Conventional Power (W/㎡) | 600W |
| Pixel Density (dot/㎡) | 112896 | Gray Scale | 14bit |
| Lamp Type | SMD1415 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 1500 | protection level | IP65 |
| Scan Mode | 1/21 Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 16 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 500x500 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 168x168 | Cabinet Weight | 12kg |
| Total Thickness (mm) | 76 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
