Stage Waterproof LED Screen Floor Tiles DM-R PH3.9 Fixed Installation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | DM-R PH3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $767.00/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Type: | LED | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500mmx1000mm | Media Available: | Datasheet, Photo |
| Pixel Pitch: | 3.91mm | Application: | Indoor, Outdoor |
| Specification: | Video Wall | Brightness: | 1500 Cd/㎡ |
| Pixel Density: | 65536 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | HS Code: | 8528591090 |
| Resolution: | 128x256 | Refresh Rate: | 1920HZ/3840HZ |
| LED Chip: | SMD1415 | Installation: | Fixed Installation |
| Highlight: | Stage LED Screen Floor Tiles,Waterproof LED Screen Floor Tiles |
||
Product Description

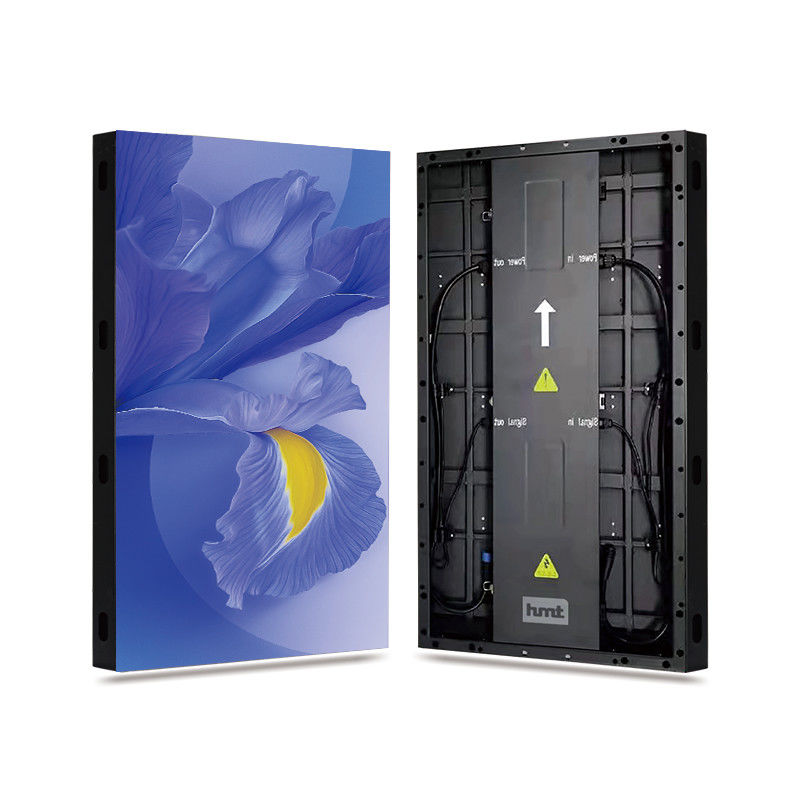

500mm*1000mm DM-R PH3.9 Outdoor Indoor waterproof stage led dance floor tiles
Detailed product introduction document:Indoor floor tile screen DM-R series.pdf
Applicable scenarios:
1. stage performance
2. exhibition hall and party
3. shopping mall and restaurant
4. Bars/Night Clubs/KTV and supermarket
5. Floor Display and Media Advertising
6. landmark building
Features:
1. high refresh and high gray scale
2. creates a vibrant and dynamic dance floor
3. Seamless splicing with Sheet Metal
4. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
5. Outdoor or indoor using, protection level can reach IP65
6. Super load-bearing performance
7. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Product Details
Models: DM-R PH3.91
| Pixel Pitch (mm) | 3.91 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 250x250 | Maximum Power (W/㎡) | 800W |
| Module Pixel | 64x64 | Conventional Power (W/㎡) | 600W |
| Pixel Density (dot/㎡) | 65536 | Gray Scale | 14bit |
| Lamp Type | SMD1415 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 1500 | protection level | IP65 |
| Scan Mode | 1/16 Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 16 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 500x1000 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 128x256 | Cabinet Weight | 23kg |
| Total Thickness (mm) | 76 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
FQA:
Q1. Can I have a sample order?
A: Yes, welcome to order the sample and cheak this quality.
