DM-R PH4.8 Outdoor Indoor LED Dance Floor Tiles 500mm*1000mm For Wedding
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | DM-R PH4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $662.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Pixel Pitch: | 4.81mm | Pixel Density: | 43264 Dot/㎡ |
|---|---|---|---|
| Brightness: | 1500 Cd/㎡ | Application: | Indoor, Outdoor |
| Type: | LED | Color: | Full Color |
| Panel Size: | 500mmx1000mm | Specification: | Video Wall |
| Lifespan (hours): | ≥100000H | IP Rating: | IP65 |
| Resolution: | 104X208 | Installation: | Fixed Installation |
| Refresh Rate: | 1920HZ/3840HZ | Module Size: | 250*250 Mm |
| Highlight: | Outdoor LED Dance Floor Tiles,Indoor LED Dance Floor Tiles,Outdoor Dance Floor Tiles 500mm*1000mm |
||
Product Description

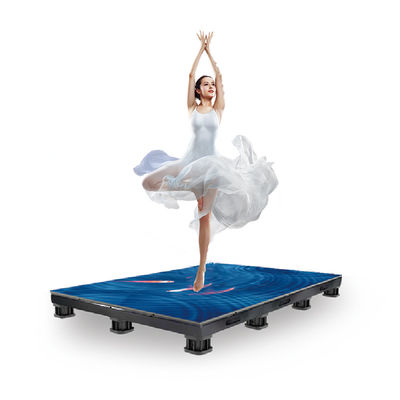

500mm*1000mm DM-R PH4.8 waterproof Outdoor Indoor led dance floor tiles for wedding
Detailed product introduction document:Indoor floor tile screen DM-R series.pdf
Applicable scenarios:
1. stage performance
2. exhibition hall and party
3. shopping mall , flagship store
4. advertising publish
5. indoor/outdoor performance
6.Commercial real estate
Features:
1. high refresh and high gray scale
2. LED screen is easy to carry, transport and install - saving good amount of money on your labor costs. LED
3. The floor LED display adopts high-strength frame design, which ensures its safety and firmness.Its maximum load-bearing capacity is about 2200kg/m,which can greatly guarantee the safety of stage activities.
4. anti-slip and anti-seismic foot mat: ensure the flatness of the screen itself at the same time, increase the anti-slip and anti-seismic effect;
5. high load-bearing capacity: the surface of the acrylic plate, is made of high-strength wear-resistant non-slip material, the maximum bearing capacity of 1.5T, strong bearing capacity, strong and thin, can be trampled at will;
6. The final products feature supreme quality and offers best outputs.
7. High reliability with Nationstar led lamp
Product Details
Models: DM-R 4.8
| Pixel Pitch (mm) | 4.81 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 250x250 | Maximum Power (W/㎡) | 800W |
| Module Pixel | 52x52 | Conventional Power (W/㎡) | 600W |
| Pixel Density (dot/㎡) | 43264 | Gray Scale | 14bit |
| Lamp Type | SMD1921 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 1500 | protection level | IP65 |
| Scan Mode | 1/13 Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 16 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 500x1000 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 104X208 | Cabinet Weight | 23kg |
| Total Thickness (mm) | 76 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
Application:
