Advertising LED Dance Floor Tiles 2.9mm Pixel Pitch 500mm*500mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | HighMight |
| Certification: | CE FCC RoHS |
| Model Number: | HMT-HFR-P2.976 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $1,300.00/square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Interactive Dance Floor LED Screen | Type: | LED |
|---|---|---|---|
| Pixel Pitch: | 2.9mm | Color: | Full Color |
| Panel Size: | 500mmx500mm | Specification: | Video Wall |
| Brightness: | 1500 Cd/㎡ | Application: | Indoor, Outdoor |
| Pixel Density: | 112896 Dot/㎡ | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Resolution: | 168x168 |
| Refresh Rate: | 1920HZ/3840HZ | Installation: | Fixed Installation |
| LED Chip: | SMD1415 | Module Size: | 250*250 Mm |
| Material: | Metal Plate | ||
| Highlight: | Advertising LED Dance Floor Tiles,LED Dance Floor Tiles 2.9mm |
||
Product Description
DM-R PH2.9 Outdoor Indoor waterproof Advertising Interactive LED Dance Floor Tile
Detailed product introduction document:Indoor floor tile screen DM-R series.pdf
Applicable scenarios:
1. stage performance
2. indoor/outdoor performance
3. shopping mall
4. Bars/Night Clubs/KTV
5. Floor Display and Media Advertising
6. landmark building
Features:
1. high refresh and high gray scale
2. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
3. Super load-bearing performance
4. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
5. Outdoor or indoor using, protection level can reach IP65
6. The best price. You are welcome to contact us for a free project evaluation.
7. it is more convenient and fast,with fast response speed,high precision of induction display,multi-scene application and multi-device
linkage
Product Details
Models: DM-R PH2.9
| Pixel Pitch (mm) | 2.976 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 250x250 | Maximum Power (W/㎡) | 800W |
| Module Pixel | 84x84 | Conventional Power (W/㎡) | 600W |
| Pixel Density (dot/㎡) | 112896 | Gray Scale | 14bit |
| Lamp Type | SMD1415 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 1500 | protection level | IP65 |
| Scan Mode | 1/21 Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 16 | Input Voltage | AC100～240V 50/60HZ |

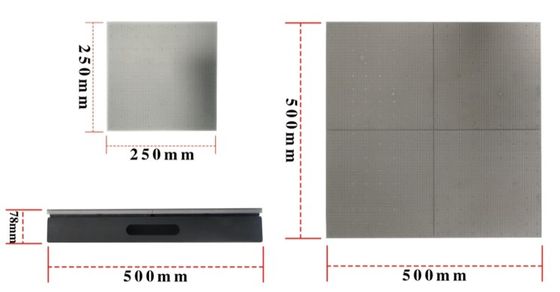

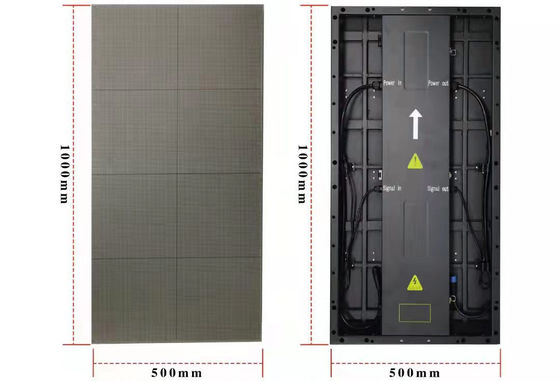

| Cabinet Size (mm) | 500x1000 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 168x168 | Cabinet Weight | 12kg |
| Total Thickness (mm) | 76 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
