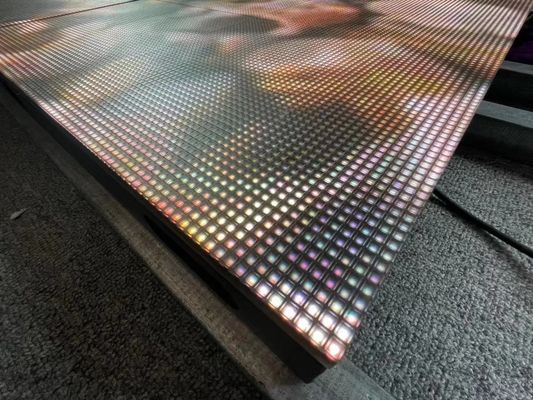

CE Interactive LED Floor Panels , Light Up Dance Floor Tiles LED 500mm*500mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | DM-R PH6.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $700.00/square meters >=1 square meters |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Indoor, Outdoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 500mmx500mm |
| Pixel Pitch: | 6.25mm | Specification: | Video Wall |
| Brightness: | 1000-4500 Cd/㎡ | Pixel Density: | 43264 Dot/㎡ |
| Lifespan (hours): | ≥100000H | IP Rating: | IP65 |
| HS Code: | 8528591090 | Resolution: | 104X104 |
| Refresh Rate: | 1920HZ/3840HZ | Installation: | Fixed Installation |
| LED Chip: | SMD1921 | Module Size: | 250mm*250 Mm |
| Highlight: | CE Interactive LED Floor Panels,Interactive Light Up Dance Floor Tiles LED,RoHS Light Up Dance Floor Tiles |
||
Product Description
DM-R PH6.25 Outdoor Indoor Interactive Dance Floor Tile Special lighting effect
Detailed product introduction document:Indoor floor tile screen DM-R series.pdf

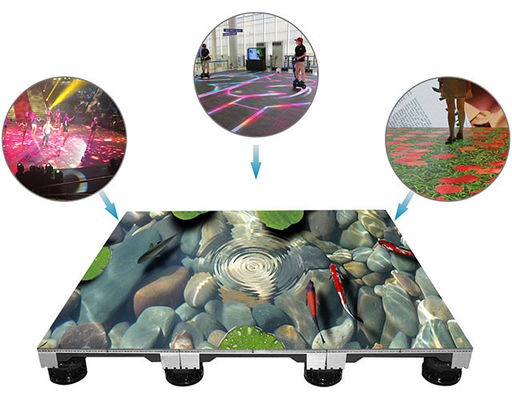

Applicable scenarios:
1. stage performance
2. welcome display and restaurant
3. wedding scene
4. exhibition hall
5. Floor Display and Media Advertising
6. shopping mall flagship store
Features:
1. high refresh and high gray scale
2. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
3. good heat dissipation
4. creates a vibrant and dynamic dance floor
5. High bearing capacity: the surface acrylic plate is made of high-strength wear-resistant anti-skid material, with a maximum bearing capacity of 1.5T, strong bearing capacity, strong and light, and can be trampled at will;
6. Anti-skid and anti-seismic foot pad: increase the anti-skid and anti-seismic effect while ensuring the flatness of the screen itself;
7. Exquisite appearance and standardized box: excellent production technology and high reliability greatly improve the installation speed and display stability of the screen, making maintenance more convenient and safe;
8. Seamless splicing: the flatness seam of the whole screen is less than 0.3mm, realizing seamless splicing. Different boxes can be combined arbitrarily.
Product Details
Models: DM-R PH6.25
| Pixel Pitch (mm) | 6.25 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 250x250 | Maximum Power (W/㎡) | 800W |
| Module Pixel | 40x40 | Conventional Power (W/㎡) | 600W |
| Pixel Density (dot/㎡) | 25600 | Gray Scale | 14bit |
| Lamp Type | SMD1921 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 1500 | protection level | IP65 |
| Scan Mode | 1/10Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 16 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 500x500 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 80X80 | Cabinet Weight | 12kg |
| Total Thickness (mm) | 76 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
