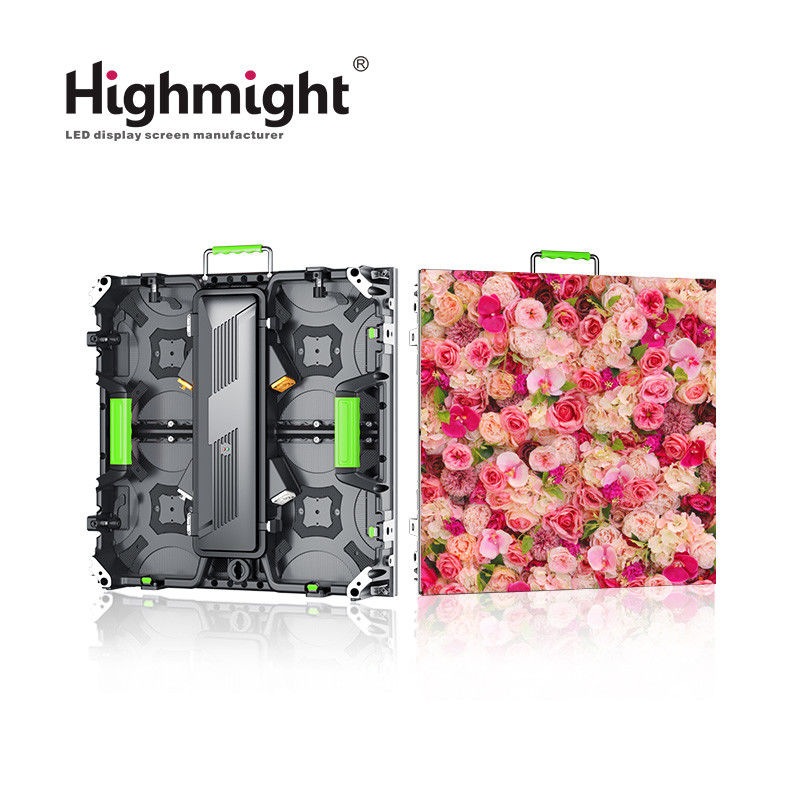

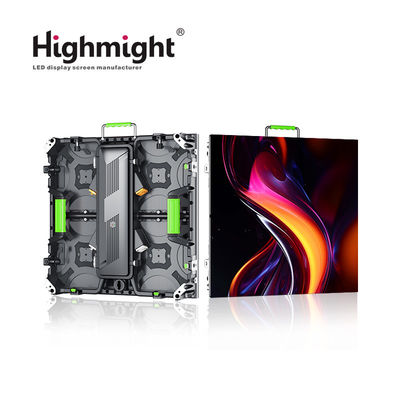

4K ultra-clear LED rental screen RS-B series Realistic colors, ultra-delicate images
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | RS-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Outdoor Rental LED Display Screen | Type: | LED |
|---|---|---|---|
| Panel Size: | 500mmx500mm | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Refresh Rate: | 1920/3840Hz |
| Box Material: | Die-cast Aluminum | Brightness: | 4500 |
| Weight: | 31kg/m² | Maintenance Method: | Back Maintenance |
Product Description
4K ultra-clear LED rental screen RS-B series Realistic colors, ultra-delicate images
Introduction:
LED rental screens are widely favored by organizers of various events for their convenience of quick installation and disassembly. The design of rental screens takes into account the high-frequency installation and disassembly needs. Its modular design and lightweight frame structure allow even non-professionals to quickly complete installation and disassembly. Many LED rental screens are also equipped with a quick locking system and tool-free disassembly design, which further speeds up the efficiency of layout and removal. The convenient installation method not only improves the efficiency of event organization, but also reduces the time cost of site layout and equipment maintenance, which is very suitable for temporary large-scale events.
Detailed product introduction document:Outdoor rental screen RS-B series single page (sof...
Applicable scenarios:
1. Stage rental
2. Banquet hall
3. Conference/lecture hall
4. Exhibition
5. Transportation
6. Entertainment and culture
7. Large-scale events
...
Features:
2. Lightweight design: It uses lightweight materials for easy transportation and installation.
3. Quick installation: Modular design supports quick splicing and disassembly.
4. High brightness: It can still maintain a clear and visible display effect in a strong light environment.
5. Wide viewing angle: It has a wide viewing angle to ensure clear viewing from different directions.
6. High refresh rate: The refresh rate is high to ensure smooth dynamic pictures without flickering.
7. Customizable size: It supports flexible customization to meet the needs of different scenarios.
Product Details
Models:RS-B
| Rental LED display screen (RS-B series) | ||||
| Models | RS-B 2.604 | RS-B 2.976 | RS-B 3.91 | RS-B 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 4500 | 4500 | 4500 | 4500 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 100,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 14bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 600W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | IP30 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||
Application:
FAQ:
Q1: What is the control system?
A: Our company uses Nova / Colorlight System / Magnimade System / Mooncell System
Q2: How to connnect?
A: Support WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Q3: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q4: What is the price of LED display?
