P3.91 outdoor rental LED screen IP65 high protection level, clear and visible
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | RS-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Outdoor Rental LED Display Screen | Type: | LED |
|---|---|---|---|
| Panel Size: | 500mmx500mm | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Refresh Rate: | 1920/3840Hz |
| Box Material: | Die-cast Aluminum | Brightness: | 4500 |
| Weight: | 31kg/m² | Maintenance Method: | Back Maintenance |
Product Description

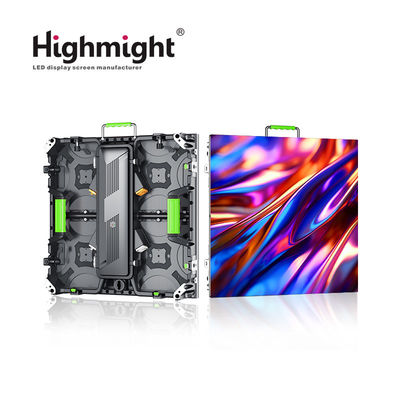

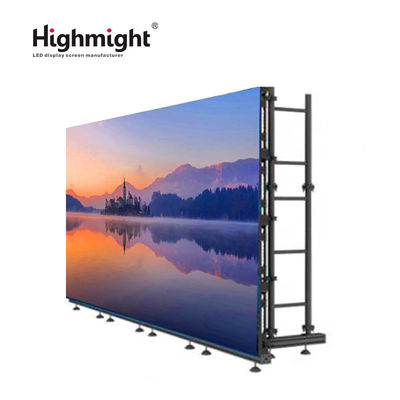

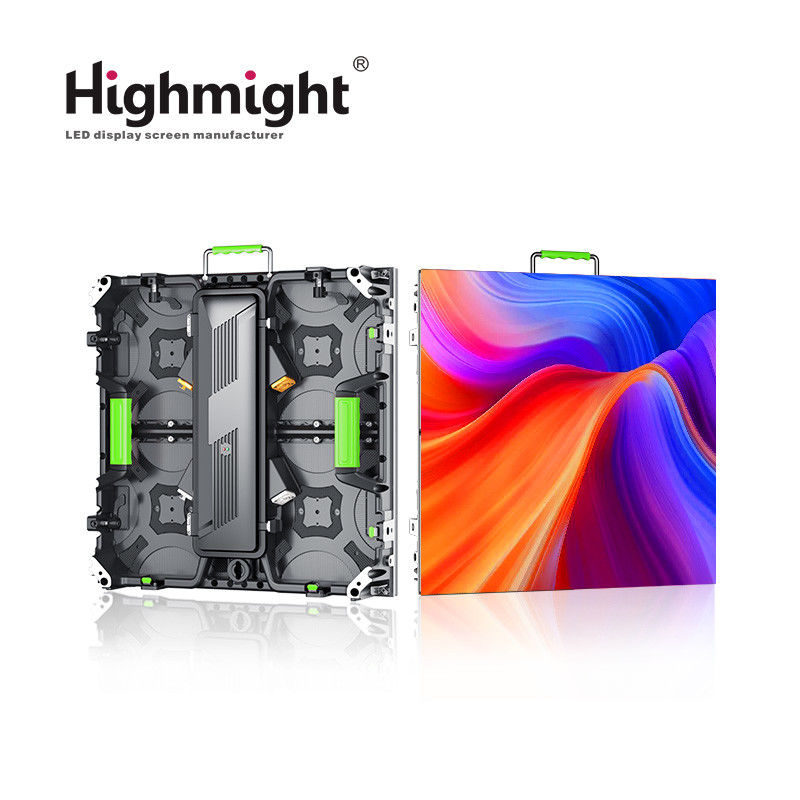

P3.91 outdoor rental LED screen IP65 high protection level, clear and visible
Introduction:
The rental LED screen is a display device designed for temporary installation scenarios. It is widely used in performances, exhibitions, sports events and other occasions that require short-term and efficient display. Compared with traditional fixed LED screens, rental screens are light, easy to disassemble and install, and can quickly respond to temporary needs. Its modular design allows the screen to be flexibly spliced into different sizes and shapes to adapt to various stage designs and space layouts. The advantages of high brightness, high definition, and wide viewing angle ensure clear display in both outdoor and indoor environments. The high refresh rate and color reproduction of the rental LED screen can present smooth and realistic dynamic images, making it an ideal choice for visual presentation of various activities.
Detailed product introduction document:Outdoor rental screen RS-B series single page (sof...
Applicable scenarios:

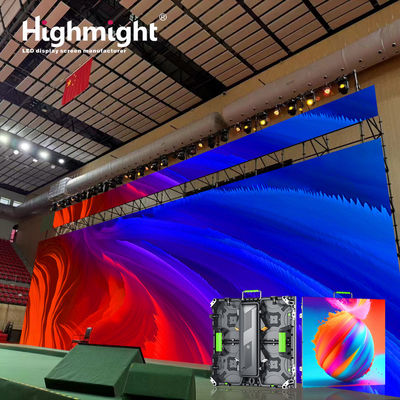

1. Stage rental
2. Banquet hall
3. Conference/lecture hall
4. Exhibition
5. Transportation
6. Entertainment and culture
7. Large-scale events
...
Features:
2. Lightweight design: It uses lightweight materials for easy transportation and installation.
3. Quick installation: Modular design supports quick splicing and disassembly.
4. High brightness: It can still maintain a clear and visible display effect in a strong light environment.
5. Wide viewing angle: It has a wide viewing angle to ensure clear viewing from different directions.
6. High refresh rate: The refresh rate is high to ensure smooth dynamic pictures without flickering.
7. Customizable size: It supports flexible customization to meet the needs of different scenarios.
8. Strong durability: It has impact-resistant and shock-proof design, suitable for frequent movement and use.
9. Low power consumption: It adopts energy-saving technology, low operating power consumption, and reduces operating costs.
Product Details
Models:RS-B
| Rental LED display screen (RS-B series) | ||||
| Models | RS-B 2.604 | RS-B 2.976 | RS-B 3.91 | RS-B 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 4500 | 4500 | 4500 | 4500 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 100,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 14bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 600W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | IP30 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||
Application:
FAQ:
Q1: What is the control system?
A: Our company uses Nova / Colorlight System / Magnimade System / Mooncell System
Q2: How to connnect?
A: Support WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Q3: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q4: What is the price of LED display?
