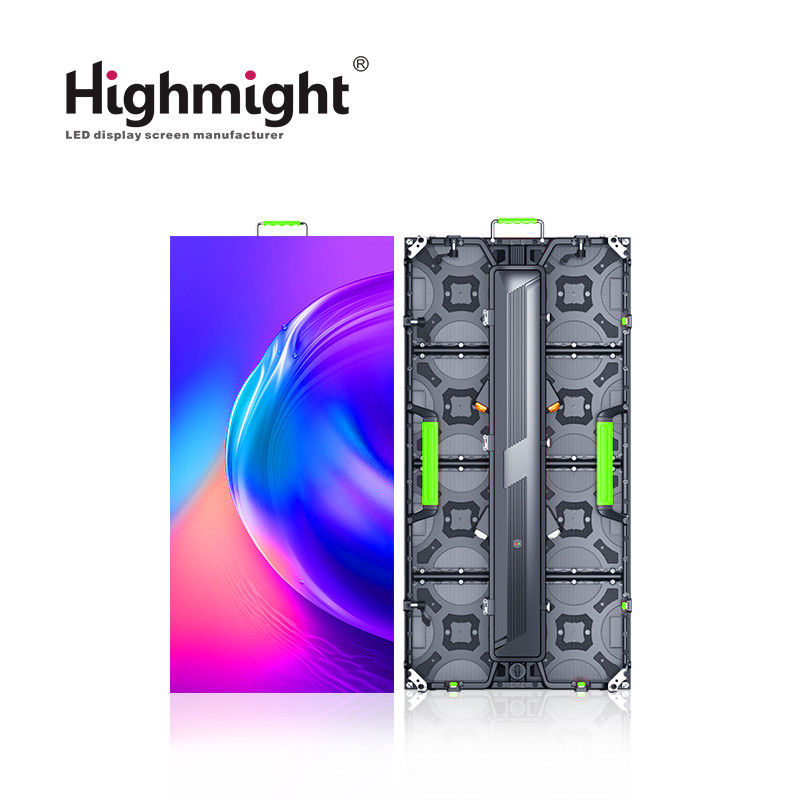

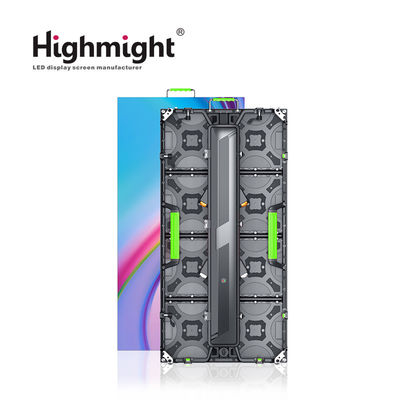

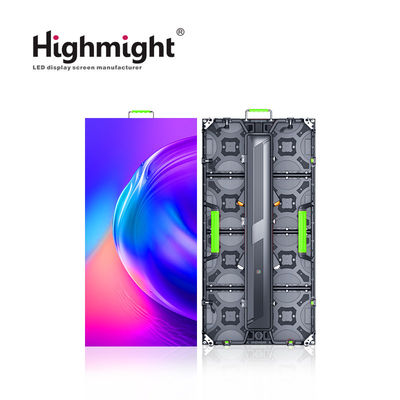

RS-B Series is the best choice for rental LED display screens for stage events
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | RS-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Indoor Rental LED Display Screen | Type: | LED |
|---|---|---|---|
| Panel Size: | 500mmx1000mm | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Refresh Rate: | 1920/3840Hz |
| Box Material: | Die-cast Aluminum | Brightness: | 4500 |
| Weight: | 31kg/m² | Maintenance Method: | Back Maintenance |
Product Description
RS-B Series is the best choice for rental LED display screens for stage events
Introduction:
LED rental screen is a display device designed for temporary occasions such as large-scale events, performances, and exhibitions. It can be quickly installed and disassembled, and is suitable for repeated use. LED rental screen has the characteristics of high-definition picture quality, high brightness, high contrast, etc. It can provide clear display effects in various light environments and supports indoor and outdoor use. In addition, the rental screen has strong stability, waterproof and dustproof, etc.
Detailed product introduction document:Outdoor rental screen RS-B series single page (sof...
Applicable scenarios:

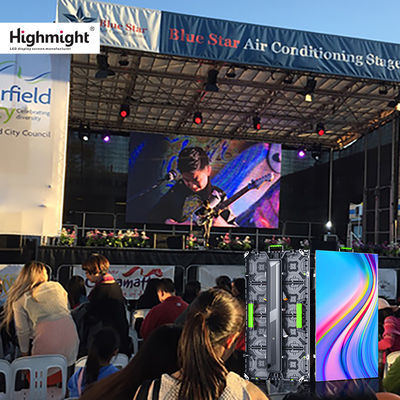

1.Stage rental
2.Banquet hall
3.Conference/lecture hall
4.Exhibition display
5.Transportation
6.Entertainment culture
...
Features:
1. Convenient installation: equipped with a quick lock design, which can be quickly assembled and disassembled.
2. Waterproof and dustproof: with a protection level of IP65 and above, it can adapt to various severe weather conditions;
3. Module corner protection design: equipped with module corner protection to prevent damage to the screen during transportation and installation;
4. Simple installation: the box can be easily and quickly installed and disassembled by stacking, hoisting, etc.
5. High grayscale level: rich details can be presented even at low brightness.
6. High brightness adjustment range: the brightness can be adjusted according to the ambient light to adapt to different usage scenarios.
Product Details
Models:RS-B
| Rental LED display screen (RS-B series) | ||||
| Models | RS-B 2.604 | RS-B 2.976 | RS-B 3.91 | RS-B 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 4500 | 4500 | 4500 | 4500 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 100,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 14bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 600W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | IP30 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||
Application:
FAQ:
Q1: What is the control system?
A: Our company uses Nova / Colorlight System / Magnimade System / Mooncell System
Q2: How to connnect?
A: Support WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Q3: What is the price of LED display?
