RS-B Series High Definition LED Rental Display Screen With Quick Assembly And Disassembly
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | RS-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | Customized price |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Indoor Rental LED Display Screen | Type: | LED |
|---|---|---|---|
| Panel Size: | 500mmx1000mm | Lifespan (hours): | ≥100000H |
| IP Rating: | IP65 | Refresh Rate: | 1920/3840Hz |
| Box Material: | Die-cast Aluminum | Brightness: | 600-850 |
| Weight: | 31kg/m² | Maintenance Method: | Back Maintenance |
| Highlight: | High Definition LED Rental Display Screen,Quick Assembly LED Rental Display Screen |
||
Product Description

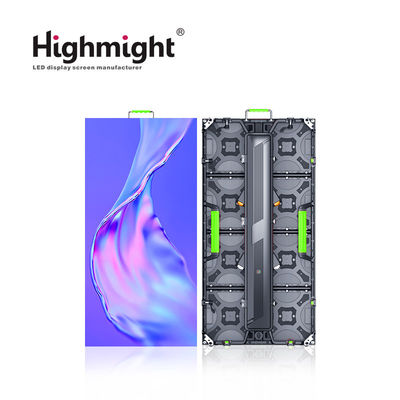

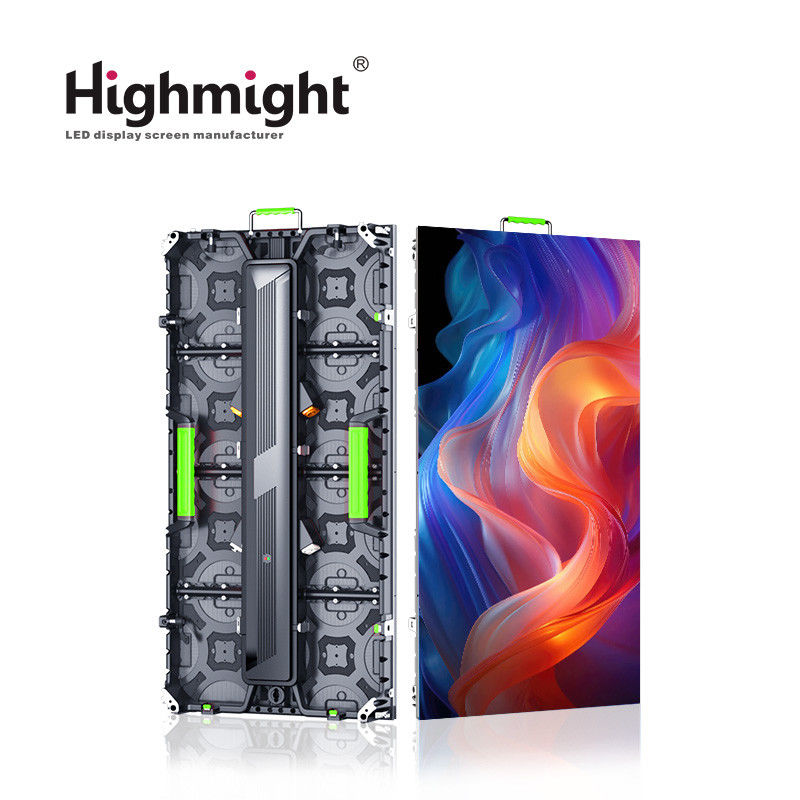

RS-B Series High Definition LED Rental Display Screen with Quick Assembly and Disassembly
Introduction:
LED rental screen is a temporary large-scale stage display screen, mainly used for various large-scale activities, exhibitions, concerts and other occasions. It consists of multiple detachable LED modules, which can be flexibly spliced and constructed according to on-site needs, and the size can reach tens of square meters. LED rental screens have the following characteristics: 1. Quick construction and disassembly: The entire display screen can be constructed in a short time and can be quickly dismantled and stored after the event. 2. High-definition picture quality and brightness: Using a high-density LED array, it can present clear and smooth picture effects, with excellent visual effects even under strong outdoor light. 3. Environmental protection and energy saving: LED technology has the advantages of low power consumption, long life, and good environmental protection and energy saving performance. 4. Strong flexibility: Modular design allows for flexible adjustment of size and shape according to on-site needs. 5. Easy maintenance: Each LED module can be replaced and repaired individually, so maintenance costs are low. LED rental screens are widely used in on-site visual displays of various large-scale events, creating stunning visual effects for events and enhancing on-site interactive experience. It is one of the preferred large display solutions for stage events.
Detailed product introduction document:Indoor rental screen RS-B series single page (soft...
Applicable scenarios:
1.Stage rental
2.Banquet hall
3.Conference/lecture hall
4.Exhibition display
5.Transportation
6.Entertainment culture
...
Features:
1.Easy installation: Equipped with a quick lock design, it can be quickly assembled and disassembled.
2.High brightness: Suitable for use outdoors and in strong light environments to ensure clear images.
3. Waterproof and dustproof: With IP65 and above protection level, it can adapt to various severe weather conditions;
4. Module corner protection design: Equipped with module corner protection to prevent damage to the screen during transportation and installation;
5. Easy installation: The box can be easily and quickly installed and disassembled by stacking, hoisting, etc.
6. High grayscale level: It can present rich details even at low brightness.
Product Details
Models:RS-B
| Rental LED display screen (RS-B series) | ||||
| Models | RS-B 2.604 | RS-B 2.976 | RS-B 3.91 | RS-B 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 800 | 800 | 800 | 800 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 100,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 14bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 600W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | IP30 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||

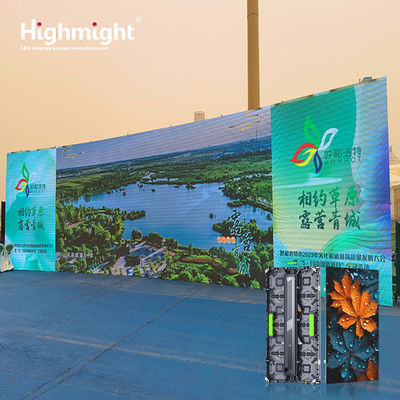

Application:
FAQ:
Q1 : What is the control system?
A : Our company uses Nova / Colorlight System / Magnimade System / Mooncell System
Q2 : How to connnect?
A : Support WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Q3 : Can I have a sample order for led screen?
A : Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
