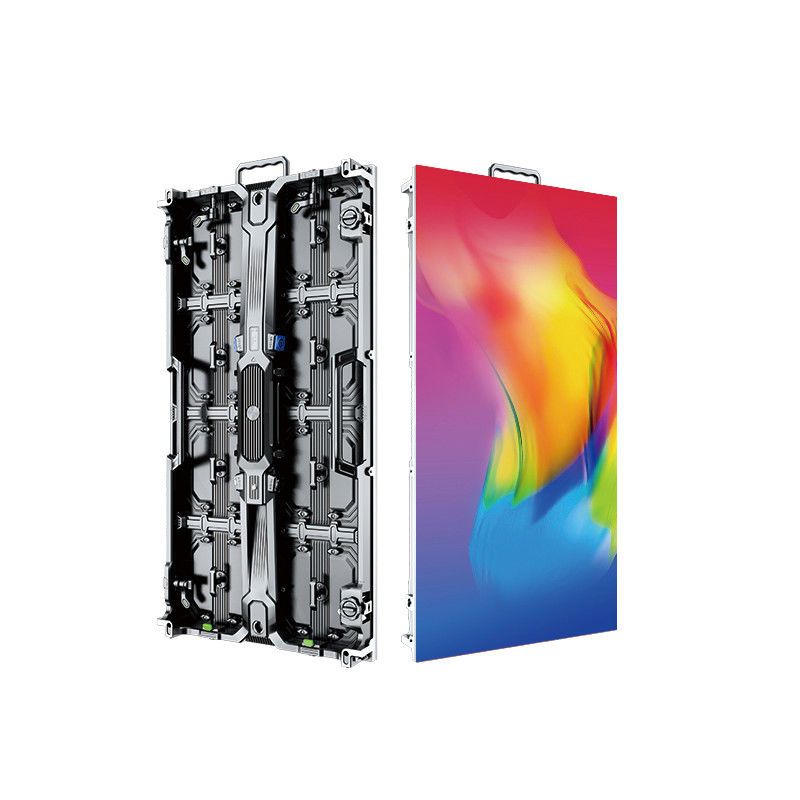

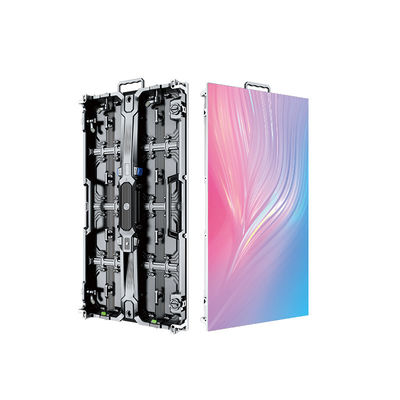

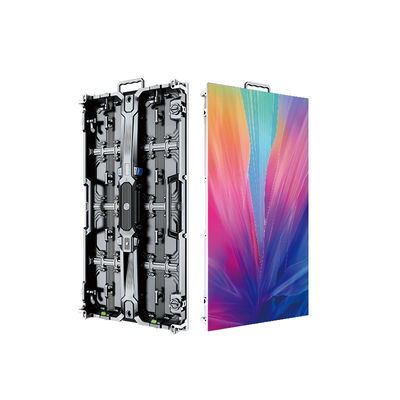

Modular Assembling Rental Indoor LED Display Screen IP30 500mm*1000mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Highmight |
| Certification: | CE FCC RoHS |
| Model Number: | RH-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 square meters |
|---|---|
| Price: | $612~992/square meters(500*1000) |
| Packaging Details: | Flight case/wooden case/carton case packing |
| Delivery Time: | 7-35 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Application: | Rental Indoor LED Display Screen | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Lifespan: | ≥100000H |
| Material: | Die-casting Aluminum | IP Rating: | IP30 |
| Cabinet Size: | 500mm*1000mm | Module Size: | 250mmx250mm |
| Highlight: | Modular Assembling Rental Indoor LED Display,Rental Indoor LED Display Screen,LED Display Screen Indoor IP30 |
||
Product Description
Rental LED display screen RH-A (INDOOR) 500mm*1000mm modular assembling and easy installation
Detailed product introduction document:Indoor rental screen RH-A series (hard connection)...
Applicable:
1. stage performance
2. commercial exhibition hall
3. Advertising activities
4.Airports,
5.Restaurants,
6.Sports venues,
7.Real estate,
8.The bar,
Features:
1.support arc splicing: can be customized arc lock, support multi-angle installation, splicing box seamless splicing;
2.convenient mixing: H500/H1000 box module common, play screen diversification;
3. Fast, simple and convenient: multi-functional link, more stable, convenient and safe;
Product Details
Models:RH-A
| Rental LED display screen (RH-A series) | ||||
| Models | RH-A 2.604 | RH-A 2.976 | RH-A 3.91 | RH-A 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 800 | 800 | 800 | 800 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 100,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 14bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 600W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | IP30 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | front /rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||
Application:
FAQ:
Q1:When will you make the delivery?
A1.We can make the delivery within 7-35 working days .
Q2 : What is the maintenance method for the product?
A : front and rear maintenance
